Phylogenetic Linear Model for Gene Expression Analysis

Fit a phylogenetic linear model using phylolm for each gene given a matrix of normalized expression data. This function inherits its interface from the limma function lmFit.

Usage

phylolmFit(
  object,
  design = NULL,
  phy,
  col_species = NULL,
  model = c("OUfixedRoot", "BM", "lambda"),
  measurement_error = TRUE,
  use_consensus = TRUE,
  consensus_tree = NULL,
  REML = TRUE,
  ncores = 1,
  ...
)

Arguments

object: a matrix data object containing normalized expression values, with rows corresponding to genes and columns to samples (species).
design: the design matrix of the experiment, with rows corresponding to samples and columns to coefficients to be estimated. Defaults to the unit vector (intercept).
phy: an object of class phylo, representing the phylogenetic relationships between the species. It must be dated and ultrametric. If the column names of object follow the pattern SpeciesName_SampleId or SpeciesName.SampleId, an automatic matching of the samples on the tip of the tree is performed. Otherwise, the tree tip labels must match with species names in col_species (see below). The tip labels of the tree can also match exactly the names as the columns of object, so that the tree directly includes all the replicates.
col_species: a character vector with same length as there are columns in the expression matrix, specifying the species for the corresponding column. If left NULL (the default), an automatic parsing of species names with sample ids is attempted.
model: the phylogenetic model used to correct for the phylogeny. Must be one of "OUfixedRoot" (the default), "BM", or "lambda". See phylolm for more details.
measurement_error: a logical value indicating whether there is measurement error, or individual independent (non phylogenetic) variation among samples. Default to TRUE. Setting this to FALSE can give unexpected results, except for the "lambda" model. See phylolm for more details.
use_consensus: If TRUE (the default), one unique consensus tree is used to represent the correlation structure, using a trimmed mean of the transformed parameters. See phylogeneticCorrelations for more details, and limma function duplicateCorrelation. If FALSE, each gene will use its own model parameters and will have its own correlation structure accordingly.
consensus_tree: If not NULL, the consensus tree containing the correlation structure, result of function phylogeneticCorrelations. If provided, arguments phy, model and measurement_error will be ignored.
REML: Use REML (default) or ML for estimating the parameters.
ncores: number of cores to use for parallel computation. Default to 1 (no parallel computation).
...: further parameters to be passed to lmFit or phylolm.

Value

An object of class PhyloMArrayLM-class, with list components coefficients, stdev.unscaled, sigma and df.residual. These quantities take the phylogenetic model into account. The object inherits from the limma class MArrayLM-class, and can be passed to eBayes.

Details

This function performs the fit in several steps:

Fit a phylogenetic linear model with phylolm on each gene.
If use_consensus = TRUE, use the trimmed mean of transformed parameters to get one regularized value for all the genes. This step uses phylogeneticCorrelations, and is similar to duplicateCorrelation. For more details on the specific parameters used in the regularization, see function getParameters.
Compute the estimated phylogenetic correlation matrix \(\hat{C}_g\) for each gene (it is the same for all genes if use_consensus = TRUE).
De-correlate the normalized data by left-multiplying it by \(\hat{C}^{-1/2}_g\) the inverse Cholesky decomposition of the correlation matrix.
Use lmFit on the de-correlated data.

In particular, this procedure ensures that the fitted coefficients, stdev.unscaled, sigma and df.residual do take the phylogeny into account, and can be used directly in downstream processing such as eBayes.

The default bounds on the phylogenetic parameters are the same as in phylolm, except for the alpha parameter of the OU, that use ad-hoc bounds from function getBoundsSelectionStrength, and the sigma2_error of the intra-specific variance, that takes it lower bound from function getMinError.

Examples

## Simulate a tree with tip conditions
set.seed(1289)
ntips <- 10
tree <- ape::rphylo(ntips, 0.1, 0)
condition <- c(0, 0, 1, 1, 1, 0, 0, 1, 1, 0)

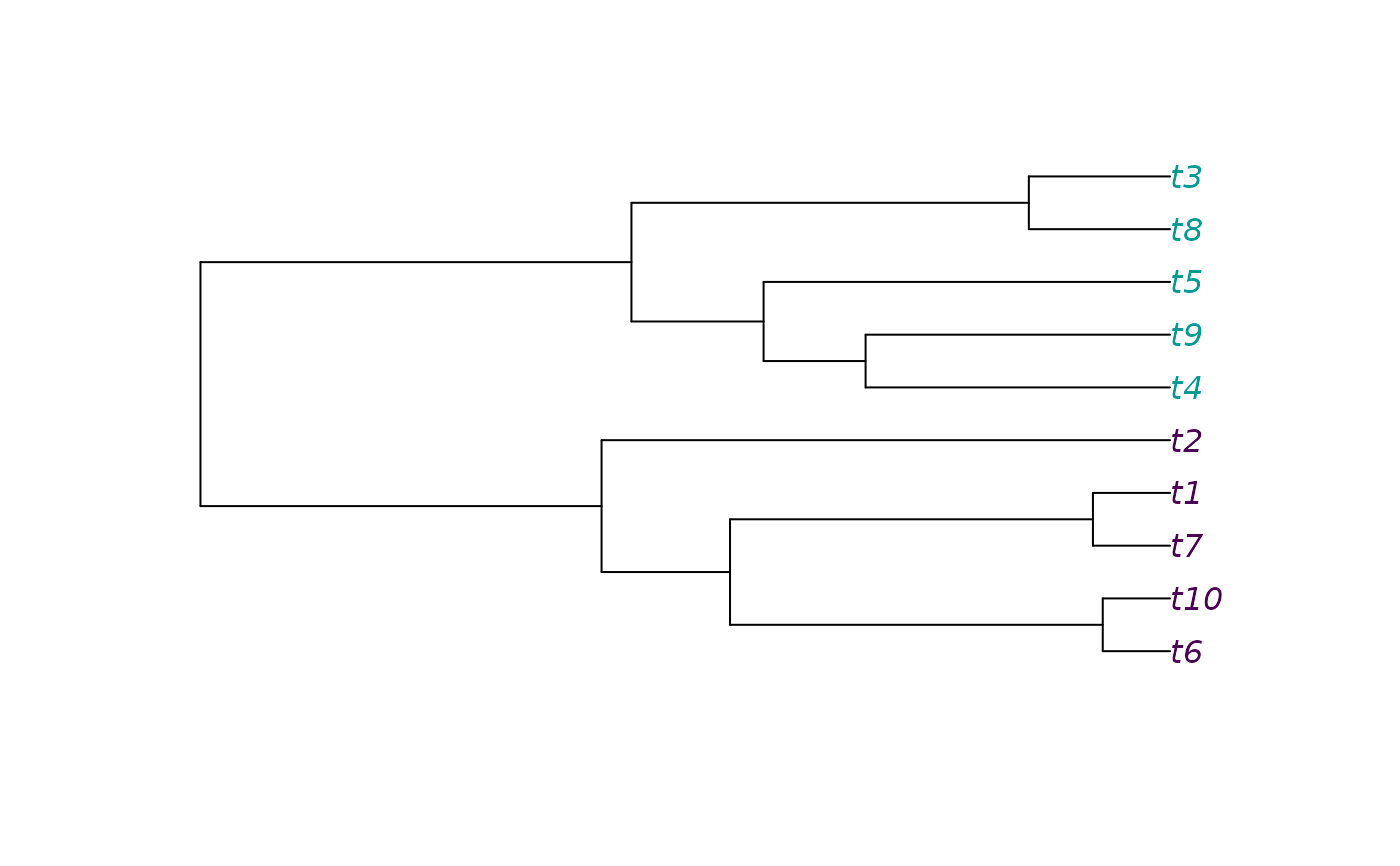

plot(tree, tip.color = hcl.colors(3)[condition + 1])


## Simulate data with 1 to 3 samples per species
reps <- sample(1:3, ntips, replace = TRUE)
rep_ids <- make.unique(rep(tree$tip.label, times = reps), sep = "_")
ngenes <- 20
dat <- matrix(rnorm(sum(reps) * ngenes, 1, 0.5), nrow = ngenes)
rownames(dat) <- paste0("g", 1:ngenes)
colnames(dat) <- rep_ids

## Add differentially expressed genes
condition_reps <- rep(condition, times = reps)
ndiff <- 5
dat[1:ndiff, ] <- dat[1:ndiff, ] + rexp(ndiff, 1/2) %*% t(condition_reps)

## Design matrix
design <- cbind(rep(1, ncol(dat)), condition_reps)
colnames(design) <- c("(Intercept)", "condition")
rownames(design) <- rep_ids

## linear model fit
pfit <- phylolmFit(dat, design = design, phy = tree)
pfit
#> PhyloMArrayLM
#>   Fit on: 20 genes.
#>   Model:  OUfixedRoot, with measurement error.
#>   Using a consensus tree.

## eBayes correction
pfit <- limma::eBayes(pfit, trend = TRUE)
limma::topTable(pfit, coef = 2)
#>          logFC   AveExpr          t      P.Value    adj.P.Val         B
#> g2   2.4801330 1.8127645  7.9985315 3.016969e-12 6.033938e-11 17.423416
#> g1   1.6783282 1.3716897  5.7235899 1.209830e-07 1.209830e-06  7.039861
#> g4   1.7538081 1.4047876  5.5060408 3.110442e-07 2.073628e-06  6.121750
#> g5   0.8542889 1.0296559  2.7063159 8.064976e-03 4.032488e-02 -3.525871
#> g13  0.5534069 0.7824108  1.8099043 7.346971e-02 2.522354e-01 -5.448973
#> g15 -0.5651961 0.8212475 -1.7959996 7.567061e-02 2.522354e-01 -5.473288
#> g17 -0.4552155 0.8176752 -1.3476872 1.809613e-01 5.170324e-01 -6.161894
#> g3   0.3247762 1.1046741  1.0831302 2.814896e-01 7.037241e-01 -6.479465
#> g8   0.3384772 0.7251398  1.0044543 3.177090e-01 7.060201e-01 -6.560914
#> g6   0.2393203 0.7514823  0.7978168 4.269648e-01 8.121245e-01 -6.746119

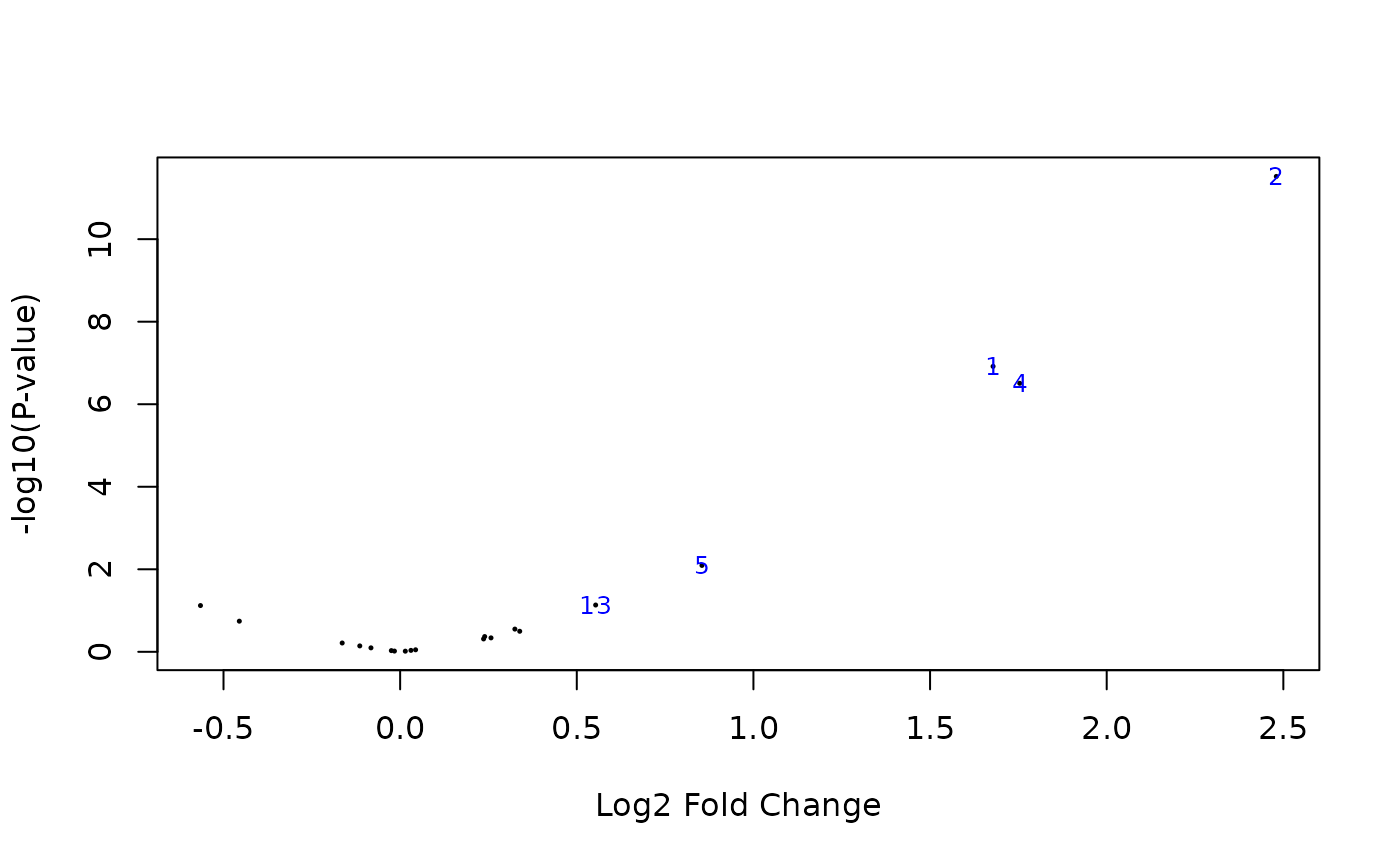

## Volcano plot
limma::volcanoplot(pfit, coef = 2, highlight = ndiff)
